XUI 2.0 API Reference — Admin, Reseller & Player API

This is the complete developer reference for the XUI 2.0 IPTV management panel API. Whether you are building a billing integration, an automation script, a reseller dashboard, or a native client app, this guide documents every endpoint, how to authenticate, and how to read the responses.

The panel exposes three distinct APIs:

Tested: The Admin API read-only surface is verified at 68/68 OK; all mutating endpoints were validated through safe create → verify → delete cycles; the public player_api.php is confirmed working. The Reseller API uses the same wrapper mechanism as the Admin API.

Authentication

Admin & Reseller API — API key

Every panel account (admin or reseller) has an api_key field (a 32-character hex string) stored on the user record. To enable API access:

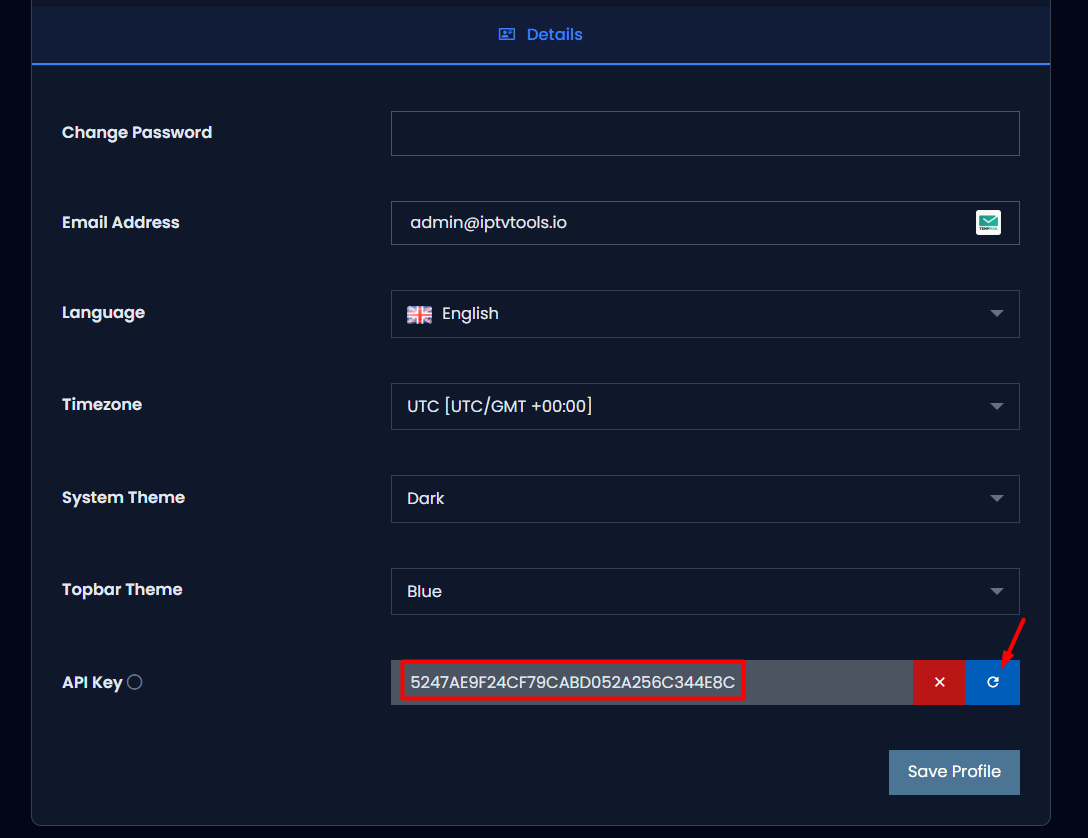

1. Generate the key from the panel: Account → API Key.

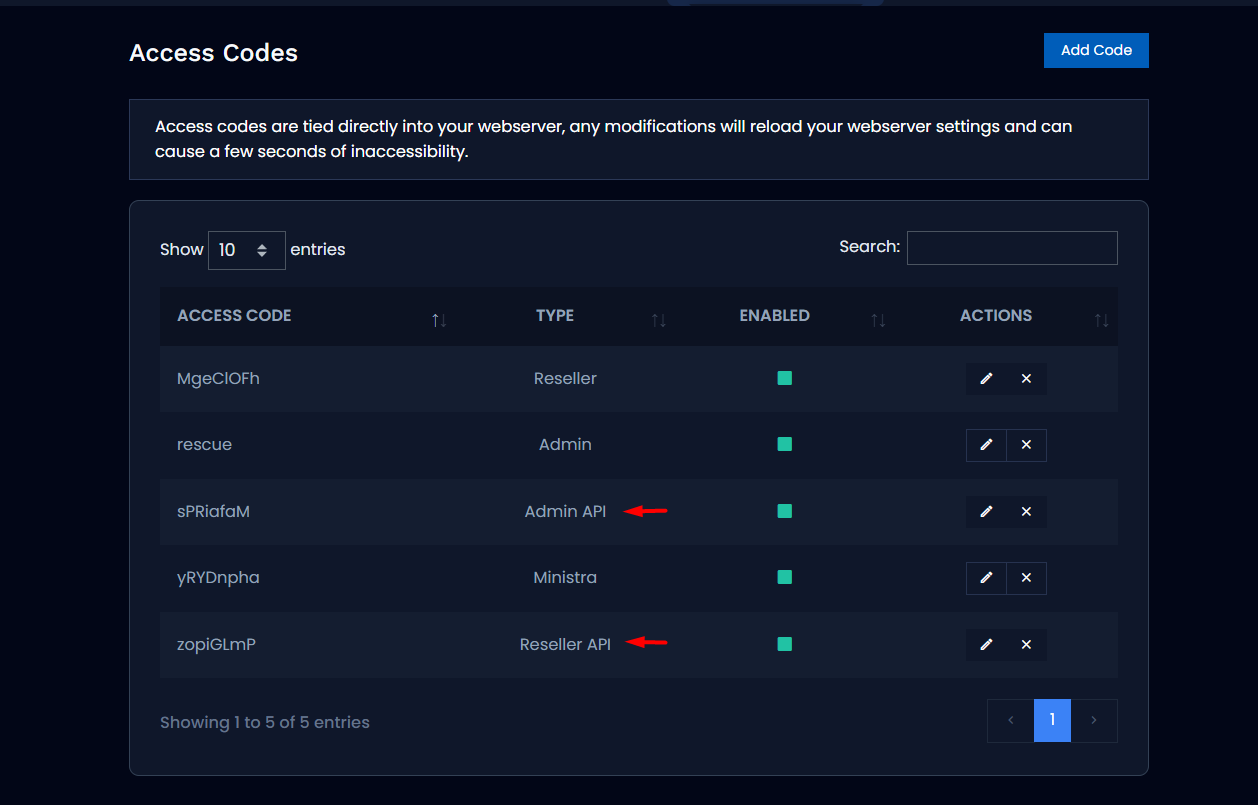

2. An administrator creates an API-type access code that routes to the API handler. Nginx aliases the code path to includes/api/admin (or includes/api/reseller).

1. Every request sends the api_key as a parameter.

Base URL (the access code becomes the path prefix):

https://your-panel.com/YOUR_ACCESS_CODE/?api_key=YOUR_API_KEY&action=ACTION&...

Quick sanity check:

curl "https://your-panel.com/YOUR_ACCESS_CODE/?api_key=YOUR_API_KEY&action=user_info"

{
  "status": "STATUS_SUCCESS",
  "data": { "id": "3", "username": "admin", "member_group_id": "1", "...": "..." }
}

Player API — line credentials

Client applications authenticate with the username and password of a line (subscriber):

https://your-panel.com/player_api.php?username=USER&password=PASS&action=ACTION

Conventions (Admin & Reseller API)

Response shapes. There are two:

• Envelope: {"status":"STATUS_SUCCESS","data":{...}} for a single object, or {"status":"STATUS_SUCCESS","data":[...],"recordsTotal":N,"recordsFiltered":N} for paginated lists.
• Raw array: some lookup-style getters return a bare JSON array (e.g. get_servers, get_bouquets, get_categories, get_epgs, get_packages).

On error you get {"status":"STATUS_<REASON>","data":{...echoed input...}}. See Status codes for the full list.

HTTP method: GET and POST both work (parameters can be in the query string or the body). Use POST for large payloads such as JSON selector arrays.

Admin API reference

The Admin API follows a uniform CRUD pattern per resource: get_<plural> (list), get_<singular>&id=N (one), create_<x>, edit_<x>&id=N, delete_<x>&id=N. For create/edit, the accepted parameters are the columns of the underlying table (mapped automatically) plus the JSON selectors described in Developer notes.

Lines (subscribers)

get_lines · get_line&id= · create_line · edit_line&id= · delete_line&id= · ban_line&id= · unban_line&id= · enable_line&id= · disable_line&id= · kill_connection

# Create a line (minimal)
curl "$BASE/?api_key=$KEY&action=create_line&username=client01&password=Secret123&member_id=3"
# => {"status":"STATUS_SUCCESS","data":{"id":"42","username":"client01", ...}}

curl "$BASE/?api_key=$KEY&action=get_line&id=42"
curl "$BASE/?api_key=$KEY&action=ban_line&id=42"
curl "$BASE/?api_key=$KEY&action=delete_line&id=42"

Useful create_line / edit_line parameters: username, password, member_id (owner), package, exp_date, max_connections, is_trial, bouquets_selected (JSON), allowed_ips, allowed_ua.

MAG devices

get_mags · get_mag&id= · create_mag · edit_mag&id= · delete_mag&id= · ban_mag&id= · unban_mag&id= · enable_mag&id= · disable_mag&id= · convert_mag&id= · mag_events

curl "$BASE/?api_key=$KEY&action=create_mag&mac=00:1A:79:AA:BB:CC&member_id=3"

Enigma2 devices

get_enigmas · get_enigma&id= · create_enigma · edit_enigma&id= · delete_enigma&id= · ban_enigma&id= · unban_enigma&id= · enable_enigma&id= · disable_enigma&id= · convert_enigma&id=

Panel users (admin / reseller / sub-reseller)

get_users · get_user&id= · create_user · edit_user&id= · delete_user&id= · enable_user&id= · disable_user&id= · adjust_credits

curl "$BASE/?api_key=$KEY&action=create_user&username=reseller1&password=Secret123&member_group_id=2"
curl "$BASE/?api_key=$KEY&action=adjust_credits&id=7&credits=100"

Live streams

get_streams · get_stream&id= · create_stream · edit_stream&id= · delete_stream&id= · start_stream&id= · stop_stream&id=

curl "$BASE/?api_key=$KEY&action=create_stream&stream_display_name=My+Channel"
# Add the source via edit_stream (stream_source as JSON) or in the create payload
curl "$BASE/?api_key=$KEY&action=start_stream&id=10"   # starts the encoder
curl "$BASE/?api_key=$KEY&action=stop_stream&id=10"

Channels, Movies, Series, Episodes, Stations (radio)

The same CRUD schema, plus start_ / stop_ where applicable:

• Channels: get_channels, get_channel&id=, create_channel, edit_channel&id=, delete_channel&id=, start_channel&id=, stop_channel&id=
• Movies (VOD): get_movies, get_movie&id=, create_movie, edit_movie&id=, delete_movie&id=, start_movie&id=, stop_movie&id=
• Series: get_series_list, get_series&id=, create_series, edit_series&id=, delete_series&id=
• Episodes: get_episodes, get_episode&id=, create_episode, edit_episode&id=, delete_episode&id=, start_episode&id=, stop_episode&id=
• Stations (radio): get_stations, get_station&id=, create_station, edit_station&id=, delete_station&id=, start_station&id=, stop_station&id=

create_channel / create_station return STATUS_NO_SOURCES if no source is supplied; create_episode requires series, season_num, and a valid source.

Providers & provider streams

get_providers · get_provider&id= · create_provider · edit_provider&id= · delete_provider&id= · reload_provider&id= · get_provider_streams

curl "$BASE/?api_key=$KEY&action=create_provider&name=MyProvider&ip=1.2.3.4&port=8080&username=u&password=p"

Categories, Bouquets, Packages, Groups

• Categories: get_categories, get_category&id=, create_category (category_name, category_type = live/movie/series/radio), edit_category&id=, delete_category&id=
• Bouquets: get_bouquets, get_bouquet&id=, create_bouquet (bouquet_name), edit_bouquet&id=, delete_bouquet&id=
• Packages: get_packages, get_package&id=, create_package (package_name + groups_selected, bouquets_selected), edit_package&id=, delete_package&id=
• Groups: get_groups, get_group&group_id=, create_group (group_name + permissions_selected, groups_selected, packages_selected), edit_group&group_id=, delete_group&id= ⚠️ (delete uses id)

EPG, Transcode profiles, Access codes, HMAC, RTMP IPs, Watch folders

• EPG: get_epgs, get_epg&id=, create_epg (epg_name, epg_file), edit_epg&id=, delete_epg&id=, reload_epg
• Transcode profiles: get_transcode_profiles, get_transcode_profile&id=, create_transcode_profile (profile_name), edit_transcode_profile&id=, delete_transcode_profile&id= ⚠️ (delete uses id)
• Access codes: get_access_codes, get_access_code&id=, create_access_code (code — min. 8 chars when type ≠ 2 — plus type), edit_access_code&id=, delete_access_code&id=
• HMAC: get_hmacs, get_hmac&id=, create_hmac (requires key), edit_hmac&id=, delete_hmac&id=
• RTMP IPs: get_rtmp_ips, get_rtmp_ip&id=, create_rtmp_ip (ip), edit_rtmp_ip&id=, delete_rtmp_ip&id=, get_rtmp_stats
• Watch folders: get_watch_folders, get_watch_folder&id=, create_watch_folder, edit_watch_folder&id=, delete_watch_folder&id=, reload_watch_folder

Servers & system

get_servers · get_server&id= · install_server · edit_server&id= · delete_server&id= · get_server_stats · get_certificate_info · get_free_space · get_fpm_status · get_pids · install_proxy · edit_proxy

curl "$BASE/?api_key=$KEY&action=get_server_stats"   # { cpu, cpu_cores, ram, ... }
curl "$BASE/?api_key=$KEY&action=get_free_space"

Blocking (IP / ISP / User-Agent)

get_blocked_ips · add_blocked_ip (ip) · delete_blocked_ip · flush_blocked_ips · get_blocked_isps · add_blocked_isp · delete_blocked_isp · get_blocked_uas · add_blocked_ua (ua) · delete_blocked_ua

Logs & monitoring

activity_logs · client_logs · credit_logs · login_logs · user_logs · system_logs · restream_logs · stream_errors · live_connections · watch_output · mag_events

All are paginated (start / limit) and use the envelope shape with recordsTotal.

Settings & utilities

• get_settings / edit_settings — read and write panel settings.
• get_directory&path=/... — list a directory (file browser).
• reload_cache, reload_nginx, reload_epg, clear_streams, clear_temp — maintenance operations.
• kill_pid&pid=, kill_connection — force-stop a process or connection.
• mysql_query&query=... — run raw SQL (powerful, admin-only). Example:

curl "$BASE/?api_key=$KEY&action=mysql_query&query=SELECT+COUNT(*)+AS+n+FROM+%60lines%60"
# => {"status":"STATUS_SUCCESS","data":[{"n":"1"}],"insert_id":0}

⚠️ Destructive endpoints run immediately, with no confirmation: delete_server, install_server, install_proxy, reload_nginx, kill_pid, clear_streams, clear_temp, flush_blocked_ips, and mysql_query (non-SELECT). Use with care.

Player API (public)

Endpoint: /player_api.php. Authentication uses a line's username + password. It follows the standard IPTV player protocol, so it works out of the box with popular client apps such as IPTV Smarters and TiviMate.

# Authentication / account info
curl "https://your-panel.com/player_api.php?username=USER&password=PASS"

{
  "user_info":   { "username": "USER", "auth": 1, "status": "Active", "exp_date": "...", "max_connections": "1" },
  "server_info": { "url": "...", "port": "80", "https_port": "443", "timezone": "..." }
}

# Live channels
curl "https://your-panel.com/player_api.php?username=USER&password=PASS&action=get_live_streams"

[
  { "num": 1, "name": "HBO", "stream_type": "live", "stream_id": 1,
    "category_id": "1", "tv_archive": 1, "tv_archive_duration": 1 }
]

Playback URLs

Derived from the responses above:

Reseller API

The Reseller API lives at includes/api/reseller and uses the same mechanism as the Admin API (api_key + action), but it is scoped to reseller operations and to the reseller's own clients. It requires a dedicated access code that aliases to includes/api/reseller (an administrator creates it under Access Codes).

Actions (35): user_info, packages, get_lines / get_line / create_line / edit_line / delete_line / enable_line / disable_line, get_mags / get_mag / create_mag / edit_mag / delete_mag / enable_mag / disable_mag, get_enigmas / get_enigma / create_enigma / edit_enigma / delete_enigma / enable_enigma / disable_enigma, get_users / get_user / create_user / edit_user / delete_user / enable_user / disable_user, convert_mag, convert_enigma, adjust_credits, activity_logs, user_logs, live_connections.

Status codes

The API returns a string status name. The full set:

STATUS_FAILURE is the generic failure (e.g. a non-existent id on get/delete).

Developer notes (gotchas)

1. delete_group and delete_transcode_profile take id (not group_id / profile_id), even though create / get / edit use group_id / profile_id. Send the value as id= when deleting.
2. JSON selectors (bouquets_selected, groups_selected, packages_selected, permissions_selected, devices_selected, users_selected) are JSON array strings, e.g. bouquets_selected=[1,2,3]. On edit, omitting a selector resets that field to empty — always send the full desired state, exactly as the panel form does.
3. create_access_code: code must be at least 8 characters when type ≠ 2; pass groups[] for types 0/1/3/4.
4. create_hmac requires key; create_channel / create_station require a source (otherwise STATUS_NO_SOURCES).
5. Pagination: only "TableAPI" endpoints (get_lines, get_streams, get_users, logs, …) honor start / limit and return recordsTotal. Lookup getters return the full raw array.
6. Column filtering: use show_columns / hide_columns to trim the payload.

Robustness note. Previously, create_group / create_package / create_line / create_mag / create_enigma / create_access_code could return an empty body when the JSON selectors were omitted. The API dispatch layer now defaults those selectors so the endpoints always return a clean status (success or a validation error) instead of a blank response.

Quick start checklist

1. Generate your api_key in Account → API Key.
2. Ask your administrator for the API access code (the path prefix).
3. Set two shell variables and you're ready:

BASE="https://your-panel.com/YOUR_ACCESS_CODE"
KEY="YOUR_API_KEY"

curl "$BASE/?api_key=$KEY&action=user_info"
curl "$BASE/?api_key=$KEY&action=get_lines&limit=10"

That's it — you now have programmatic access to the entire XUI 2.0 panel. Happy building.
