Extract Widevine L3 CDM from Android with Dumper

🔓 How to Dump Widevine L3 CDMs from Android Devices – Full Tutorial

This guide explains how to extract Widevine L3 CDM (Content Decryption Module) files from Android devices using Dumper, an open-source tool based on Frida.

Extracting your own CDM enables testing of DRM-protected content in environments like Pywidevine, offline decryption, or stream analysis tools.

⚠️ For educational and research purposes only. Do not use this method to violate DRM protections or distribution agreements.

🧰 Requirements & Dependencies

You will need:

An Android device (with Widevine L3 support)
ADB & USB debugging enabled
Frida installed on both PC and Android
Python 3 (tested with 3.7+)

Clone the Dumper tool from GitHub:

git clone https://github.com/wvdumper/dumper
cd dumper
pip3 install -r requirements.txt

⚙️ Step-by-Step Guide

1️⃣ Enable USB Debugging

On your Android device:

Go to Settings > About Phone > Tap Build Number 7x to enable Developer Mode
Then go to Developer Options and enable USB Debugging

2️⃣ Start Frida-Server on Android

Download a compatible frida-server binary for your device’s architecture
Push it to your phone:

adb push frida-server /data/local/tmp/
adb shell "chmod 755 /data/local/tmp/frida-server"

Start the server:

adb shell "/data/local/tmp/frida-server &"

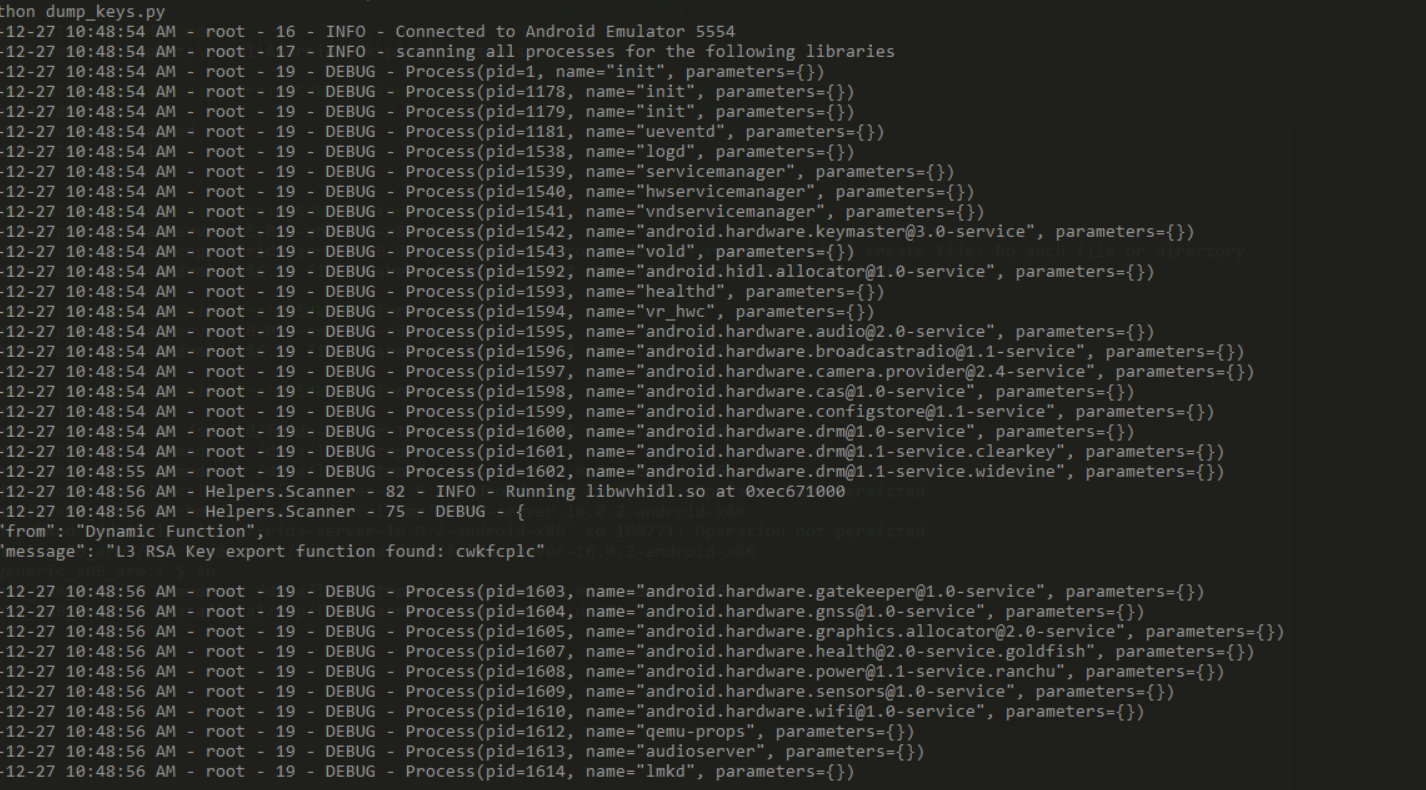

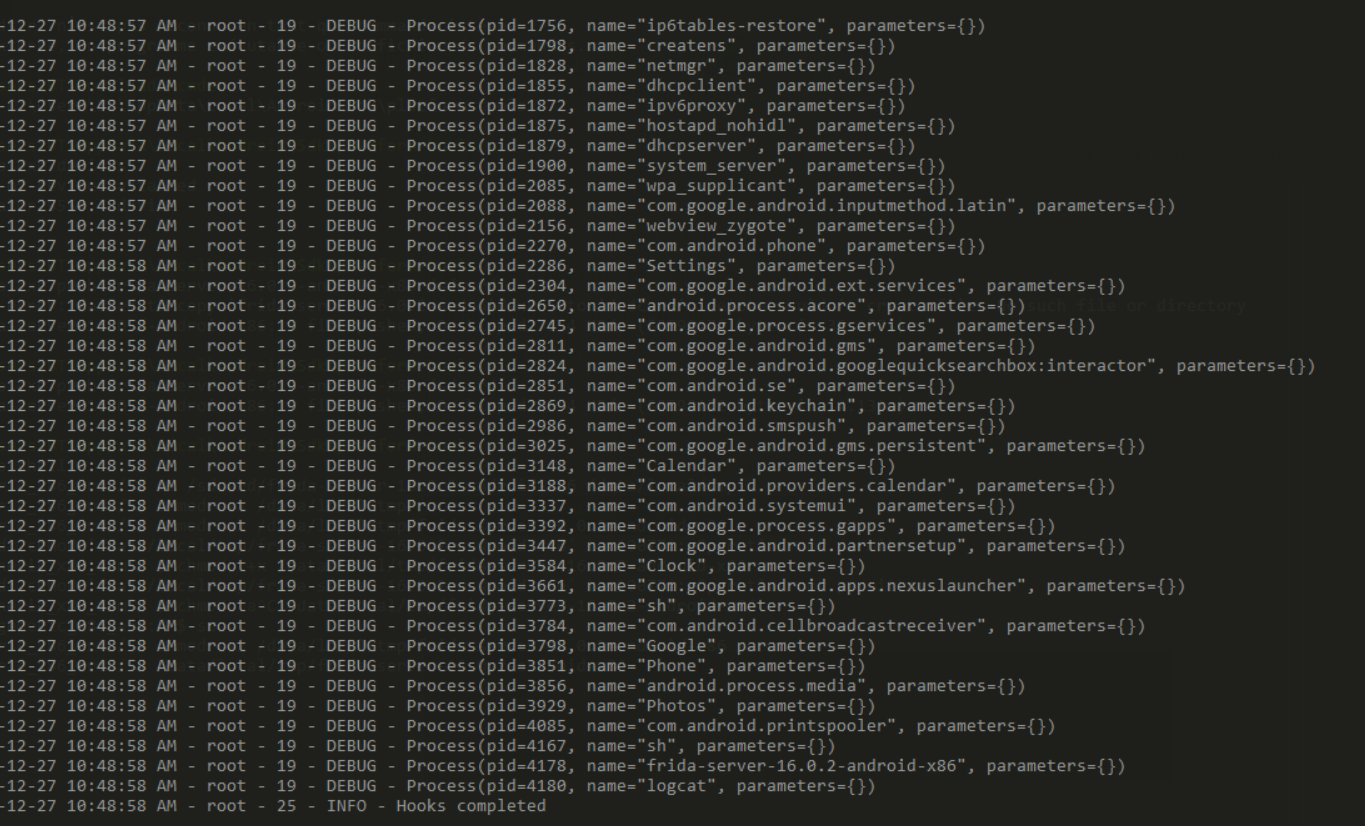

3️⃣ Launch the Dumper

On your PC, run the script while the device is connected:

python3 dump_keys.py

Keep this terminal open!

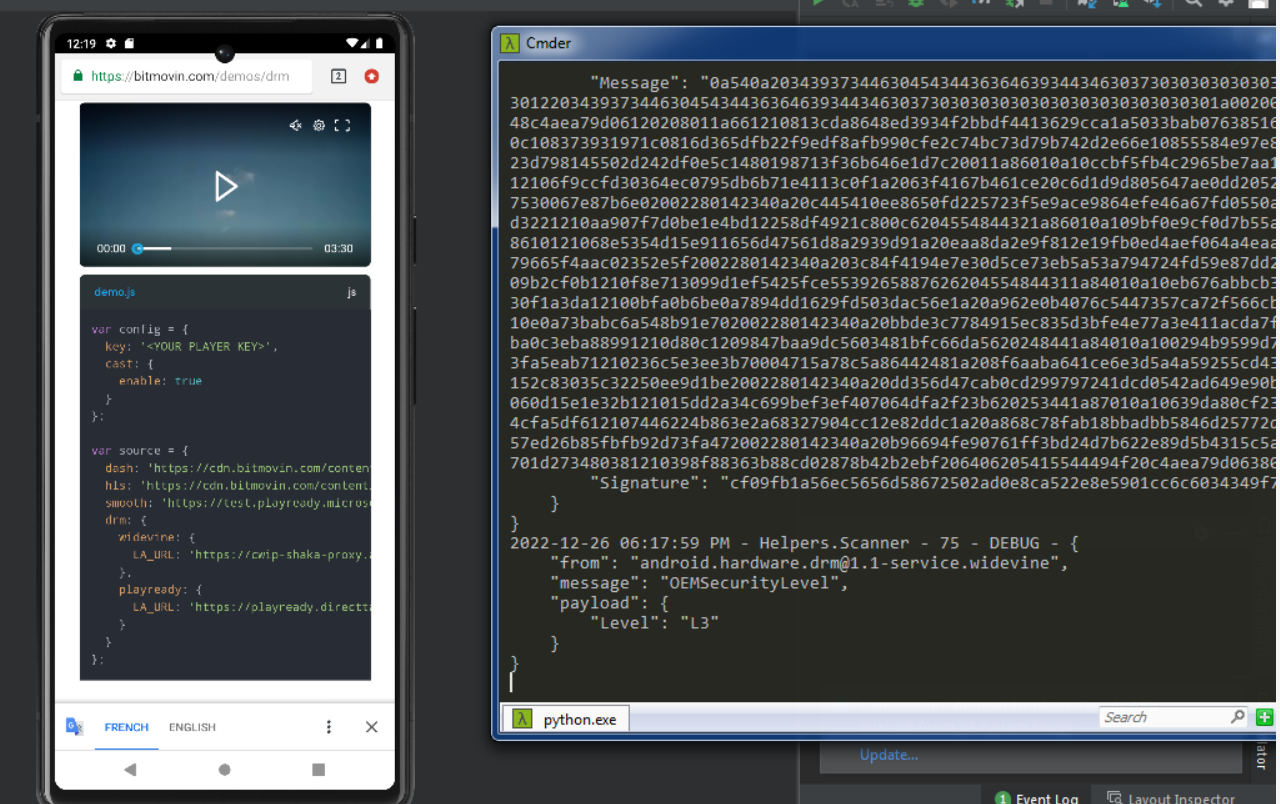

4️⃣ Start DRM Playback on the Device

Go to a DRM-protected video using a browser like Chrome (e.g. Bitmovin demo page) or a streaming app.

Once the video starts playing, the Dumper script will extract the required Widevine data.

🔐 Temporary Disablement of L1 to Force L3

Some brands (like Xiaomi) may default to Widevine L1, which is not accessible after bootloader unlock.

To force L3, install the Magisk module:

Module name: liboemcrypto-disabler
Install via Magisk Manager
Reboot

Now, Widevine will fall back to L3 and Dumper will work.

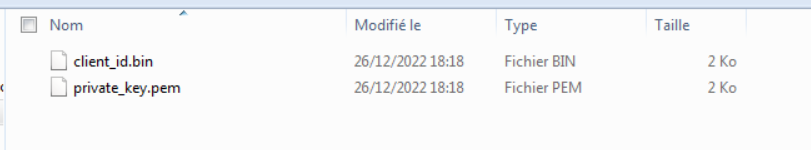

📦 Output Files You Will Get

After Dumper completes, you’ll find a new directory called private-keys containing:

client_id.bin → rename to device_client_id_blob
private_key.pem → rename to device_private_key

These files are essential for:

pywidevine
widevine_keys
o11 OTT Streamer
Custom DRM testing tools

🔍 What is a Widevine L3 CDM?

A Content Decryption Module (CDM) is the secure core of any DRM system. It handles:

License requests
Secure key management
On-device decryption of media content

Widevine L3 is a software-based CDM level:

Runs entirely in user space
Does not require Trusted Execution Environment (TEE)
Easier to extract & analyze for testing and automation

Once extracted, an L3 CDM can be used to:

Request Widevine licenses programmatically
Extract decryption keys from license responses
Use tools like Pywidevine, widevine_keys, or WKS-KEYS
Build Python scripts for auto-updating keys and tokens
Test browser extensions that interact with EME APIs
Integrate with o11 OTT Streamer or Xaccel-Codec

CDMs are critical components for any DRM decryption workflow. Having your own L3 CDM gives you full control over testing, automation, and research.

🔗 Use Your CDM in Pywidevine

Once you have your CDM files, you can use them with Pywidevine to:

Send license requests
Parse MPD + PSSH
Extract decryption keys
Decrypt video segments offline

🔁 Convert Blobs to WVD Format (or vice versa)

If you want to convert your extracted CDM blobs (device_client_id_blob and device_private_key) into a .wvd file (Widevine Device file), or extract blobs from a .wvd, you can use this browser-based tool:

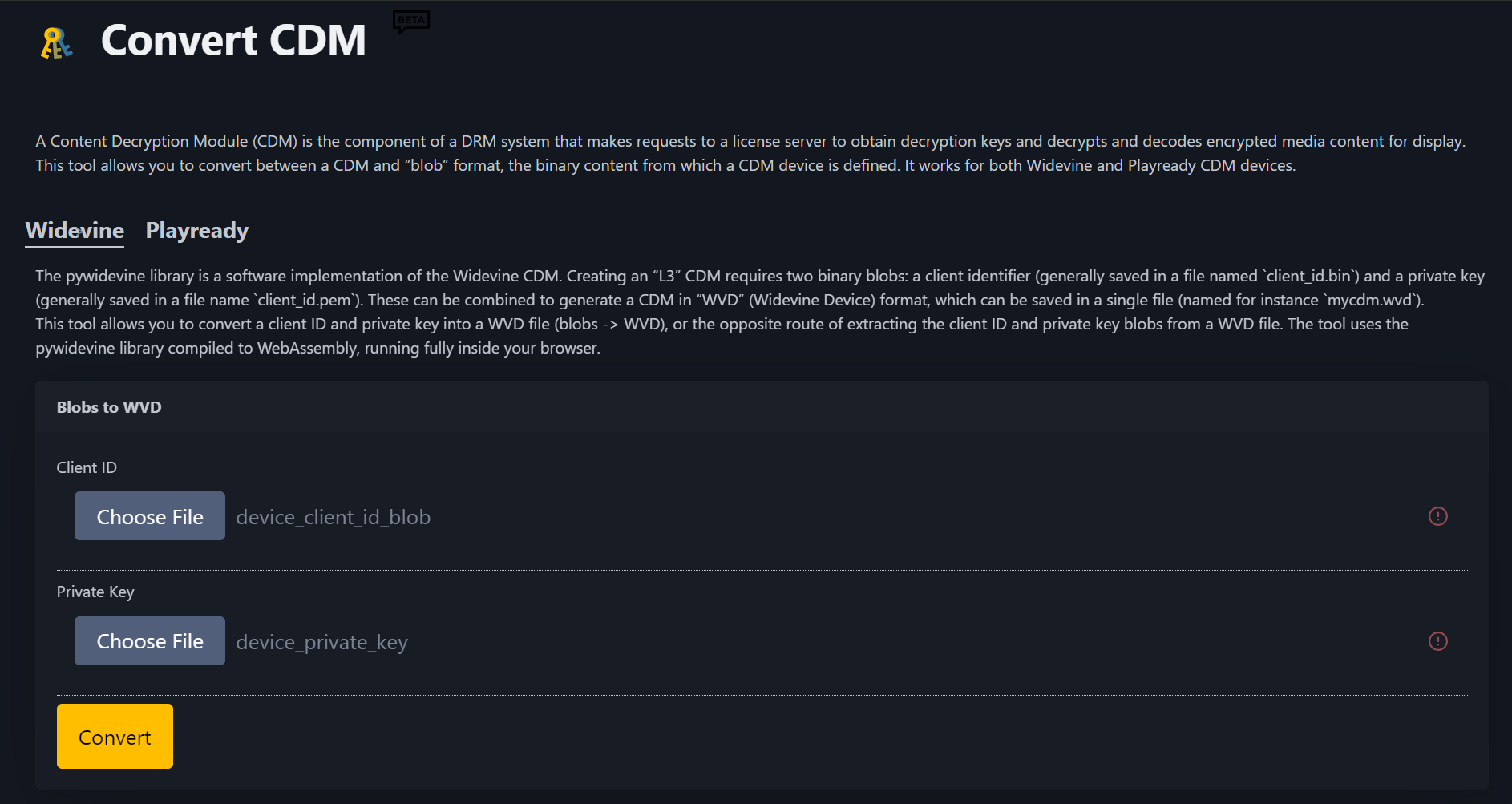

🔧 Convert CDM - PSSH Box Tool

This tool runs fully in the browser using WebAssembly compiled from Pywidevine. It supports both Widevine and PlayReady formats.

▶️ Modes Supported:

Blobs → WVD: Combine device_client_id_blob + device_private_key into mycdm.wvd
WVD → Blobs: Extract individual components from a .wvd file

No server-side processing, 100% client-side and safe for local use.
